1x9 Dual SC (DSC) Optical Transceivers

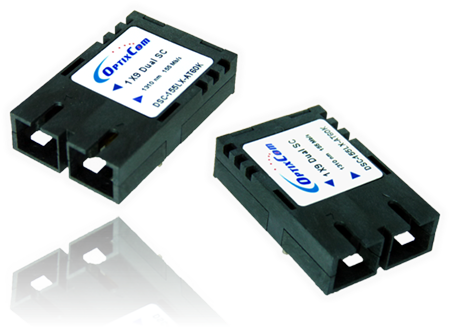

OptixCom’s 1x9 dual SC optical transceivers provide a cost effective and low profile solution for the general data communication links. The standard 1x9 pin interface simplifies the I/O design for the system integration. The 1x9 optical transceivers are also available with pigtail package or standard ST connector interface upon request.

Features

850/1310 nm multimode, 1310/1550 nm single mode, CWDM
Up to 80 km for 1.25 Gb/s, and120 km for 155 Mb/s
Duplex SC connector, standard 1x9 pluggabe package
AC/DC coupling LVPECL differential I/O, TTL/PECL signal detect
RoHS, TUV, UL, Class 1 laser 21 CFR 1040.10 and 1040.11

Applications

FTTH, FTTX, ATM/SONET, SDH, Ethernet, Fiber Channel
High speed I/O bus extension, systems interconnects
Data Communication for SAN and LAN
Routers and switches, computer cluster cross-connect
Industrial control links and media converters

Low Cost Package!!

	DSC Design Reference Guide		Complete DSC Product Catalog
* Pigtail package is available upon request. *

Part Number	Data Rate	Wavelength	Distance	Power Budget	Temp. Range
DSC-155SX-DP2K	155 Mb/s	850 nm	2 KM	14 dB	0 – 70/-20 – 85°C
DSC1250SX-AT500M	1.25 Gb/s	850 nm	0.5 KM	9 dB	0 – 70/-20 – 85°C
DSC-155LX-DP2K	155 Mb/s	1310 nm	2 KM	11 dB	0 – 70/-40 – 85°C
DSC-155LX-DP15K	155 Mb/s	1310 nm	15 KM	12 dB	0 – 70/-40 – 85°C
DSC-155LX-DP30K	155 Mb/s	1310 nm	30 KM	19 dB	0 – 70/-40 – 85°C
DSC-155LX-DP60K	155 Mb/s	1310 nm	60 KM	30 dB	0 – 70/-40 – 85°C
DSC-1250LX-AT2K	1.25 Gb/s	1310 nm	2 KM	10 dB	0 – 70/-40 – 85°C
DSC-1250LX-AT10K	1.25 Gb/s	1310 nm	10 KM	11 dB	0 – 70/-40 – 85°C
DSC-1250LX-AT40K	1.25 Gb/s	1310 nm	40 KM	20 dB	0 – 70/-40 – 85°C
DSC-1250LX-AT50K	1.25 Gb/s	1310 nm	50 KM	24 dB	0 – 70/-40 – 85°C
DSC-155EX-DP20K	155 Mb/s	1550 nm	20 KM	19 dB	0 – 70/-40 – 85°C
DSC-155EX-DP100K	155 Mb/s	1550 nm	100 KM	30 dB	0 – 70/-40 – 85°C
DSC-155EX-DP120K	155 Mb/s	1550 nm	120 KM	35 dB	0 – 70/-40 – 85°C
DSC-1250EX-AT-30K	1.25 Gb/s	1550 nm	30 KM	12 dB	0 – 70/-40 – 85°C
DSC-1250EX-AT-60K	1.25 Gb/s	1550 nm	60 KM	20 dB	0 – 70/-40 – 85°C
DSC-1250EX-AT-80K	1.25 Gb/s	1550 nm	80 KM	24 dB	0 – 70/-40 – 85°C
DSC-1250CLX-AT40K-XX	1.25 Gb/s	1270 - 1450 nm CWDM	40 KM	20 dB	0 – 70°C
DSC-1250CLX-AT60K-XX	1.25 Gb/s	1270 - 1450 nm CWDM	60 KM	24 dB	0 – 70°C
DSC-1250CEX-AT60K-XX	1.25 Gb/s	1470 - 1610 nm CWDM	60 KM	20 dB	0 – 70°C
DSC-1250CEX-AT80K-XX	1.25 Gb/s	1470 - 1610 nm CWDM	80 KM	24 dB	0 – 70°C
